產品名稱：ET5228H 0.6Ω Dual SPDT Negative Signal Handing Analog Switch
型號： ET5228H
產片介紹：General Description TheET5228HisanadvancedCMOSanalogswitchfabricatedinSub−micronsilicongateCMOStechnology ThepartalsofeaturesguaranteedBreakBeforeMake(BBM) switching,as
產片介紹：General Description TheET5228HisanadvancedCMOSanalogswitchfabricatedinSub−micronsilicongateCMOStechnology ThepartalsofeaturesguaranteedBreakBeforeMake(BBM) switching,as
┄┄┄詳細介紹┄┄┄
General Description
The ET5228H is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to -2.5V.
ET5228H is offered in a small QFN10L package, which is ideal for small form factor portable equipment.
Features
● Low RON is typical 0.6Ω @ VCC =3.3V
● Single supply operation from 1.65V to 5.5V
● Full -2.5V to VCC signal handling capability
● High off-channel isolation
● Very low standby current
● Very low distortion
● Break-Before-Make(BBM) switching
● High continuous current capability is ±300mA through each switch
● Package information:
Application
● Smart Phones and Cellular Phones
● Cell Phone Audio Block/ Speaker
● Earphone Switching Ring-Tone Chip
● Amplifier Switching/Modems

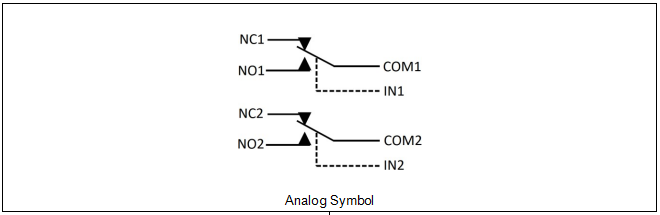

Analog Symbol

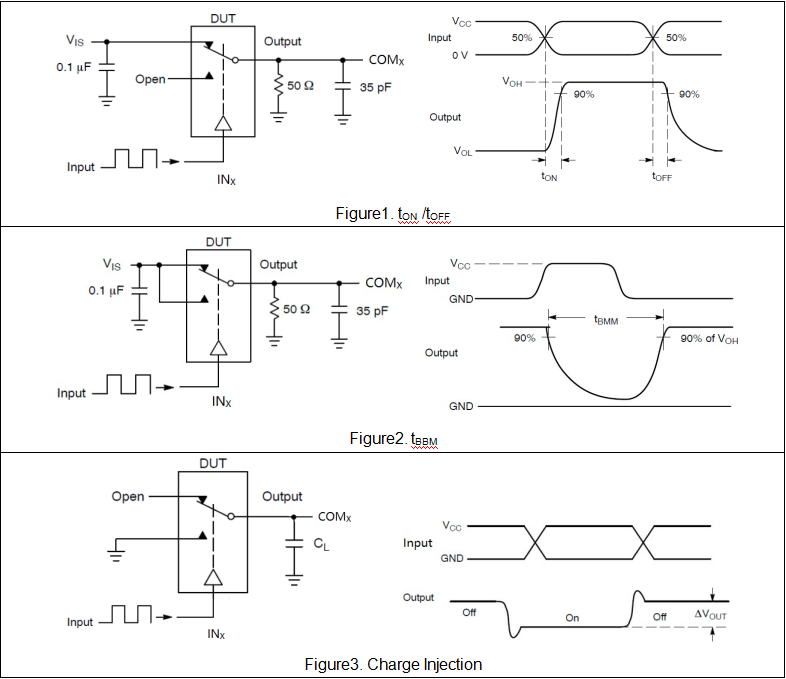

Test Circuit

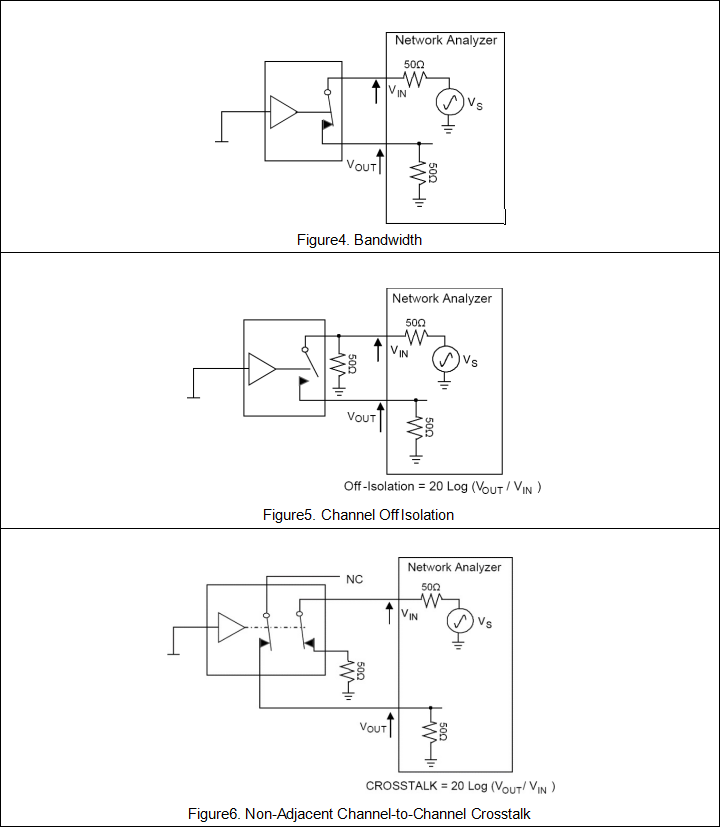

Test Circuit (Continued)
