產品名稱：ET7222 High-Speed USB 2.0(480Mbps) Switch
型號： ET7222
產片介紹：General Description The ET7222 is a 2CH single-pole double-throw (SPDT) switches Their wide bandwidth and low bit-to-bit skew allow them to pass high-speed
產片介紹：General Description The ET7222 is a 2CH single-pole double-throw (SPDT) switches Their wide bandwidth and low bit-to-bit skew allow them to pass high-speed
┄┄┄詳細介紹┄┄┄
General Description
The ET7222 is a 2CH single-pole/double-throw (SPDT) switches. Their wide bandwidth and low bit-to-bit skew allow them to pass high-speed differential signals with good signal integrity.
Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Industry-leading advantages include a propagation delay of less than 250 ps, resulting from its low channel resistance and low I/O capacitance. Their high channel-to-channel crosstalk rejection results in minimal noise interference. Their bandwidth is wide enough to pass High-Speed USB 2.0 differential signals (480 Mb/s).
ET7222 is offered in a QFN10L and MSOP10 package.
Features
● RON is typically 6.0 Ω @ VCC = 3.3 V
● Low Bit-to-Bit skew is typically 50 ps
● Low crosstalk is typical -37 dB @ 250 MHz
● Low current consumption is 1.0 µA typical
● Near-zero propagation delay is typical 250 ps
● Channel on-capacitance is 4.0 pF typical
● VCC Operating Range from 1.65 V to 4.5 V
● ≥ 750 MHz bandwidth (or data frequency)
● Part No. and package
Applications
● Differential Signal Data Routing
● USB 2.0 Signal Routing
Analog Symbol

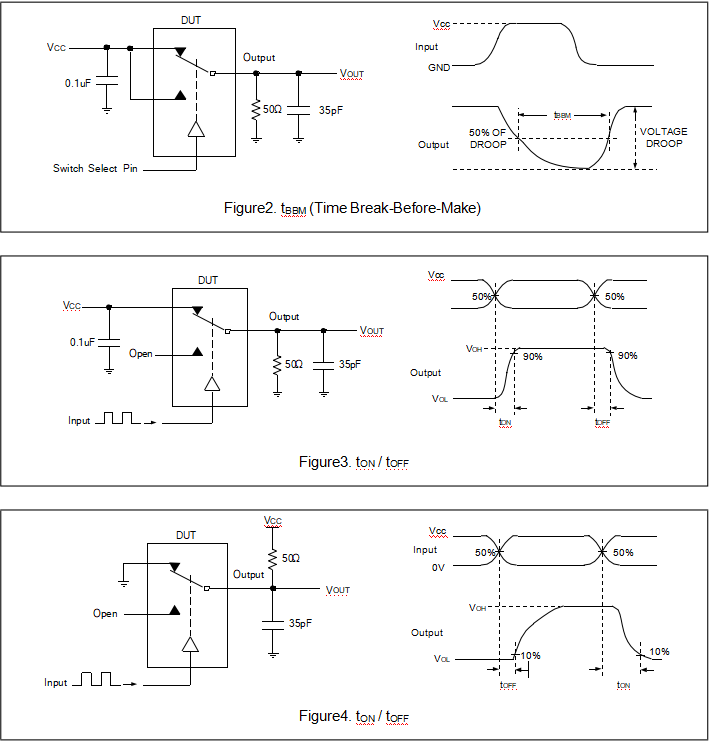

Test Circuit and Waveform

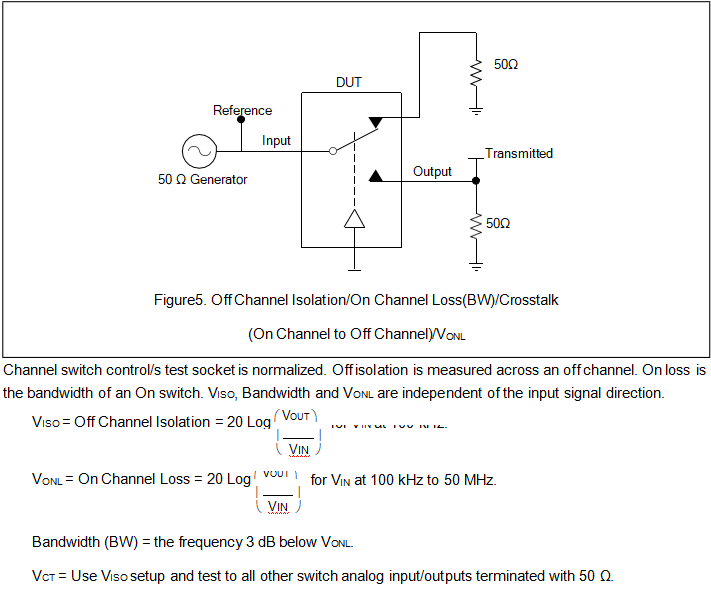

Test Circuit and Waveform(Continued)

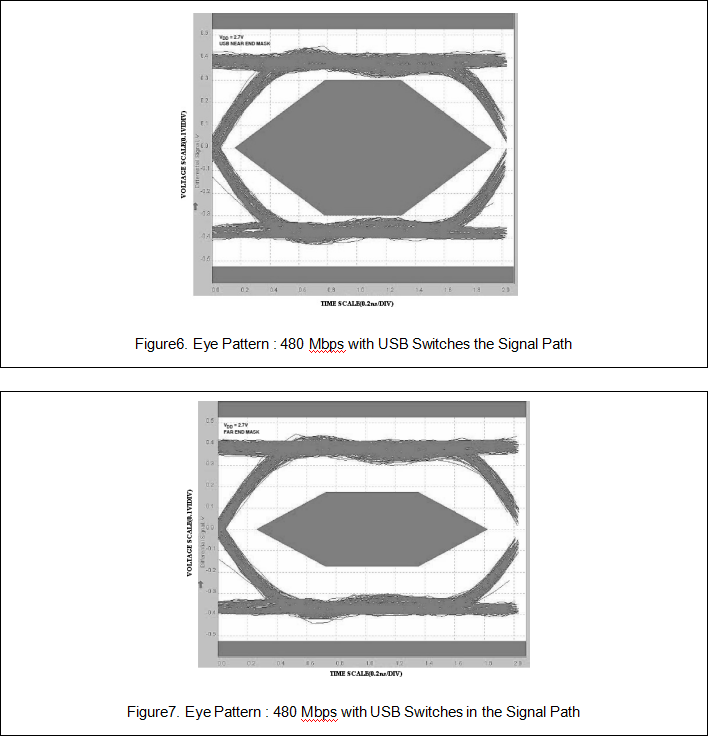

Typical Performance Curves
TA = +25 °C, Unless Otherwise Specified
