PMIC多通道電源管理芯片
產品名稱：RY1228AD10 2CH PMU with Dual Buck
型號： RY1228AD1
產片介紹：The RY1228AD10 is a 2-channel PMU that includes dual high frequency, synchronous, rectified, step-down, switch-mode converters with internal power MOSFETs Two inputs voltage range from 4 5V to 17V and two outputswith up to 2A current ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation
產片介紹：The RY1228AD10 is a 2-channel PMU that includes dual high frequency, synchronous, rectified, step-down, switch-mode converters with internal power MOSFETs Two inputs voltage range from 4 5V to 17V and two outputswith up to 2A current ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation
┄┄┄詳細介紹┄┄┄
General Description
The RY1228AD10 is a 2-channel PMU that includes dual high frequency, synchronous, rectified, step-down, switch-mode converters with internal power MOSFETs. Two inputs voltage range from 4.5V to 17V and two outputs with up to 2A current. ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation.
The RY1228AD10 requires a minimal number of readily available, external components and is available in an DFN10-3×3 package.
Features
• 2CH: Dual Buck
• CH1 Buck: VIN 4.5V-17V, 2A, 1.2MHz, ECOT Mode Control with Fast Transient Response,
Continuous Conduction Mode (CCM)
• CH2 Buck: VIN 4.5V-17V, 2A, 1.2MHz, ECOT Mode Control with Fast Transient Response,
Continuous Conduction Mode (CCM)
• Over Current Protection
• Over Voltage Protection
• Short Protection with Hiccup-Mode
• Thermal Shutdown
• Available in DFN10-3×3 Package
• -40°C to +85°C Temperature Range
Applications
• Digital Set-top Box (STB)
• Tablet Personal Computer (Pad)
• Flat-Panel Television and Monitor
• Wi-Fi Router / AP
• Digital Video Recorder (DVR)
• Portable Media Player (PMP)
• Cable Modem / XDSL
• General Purposes

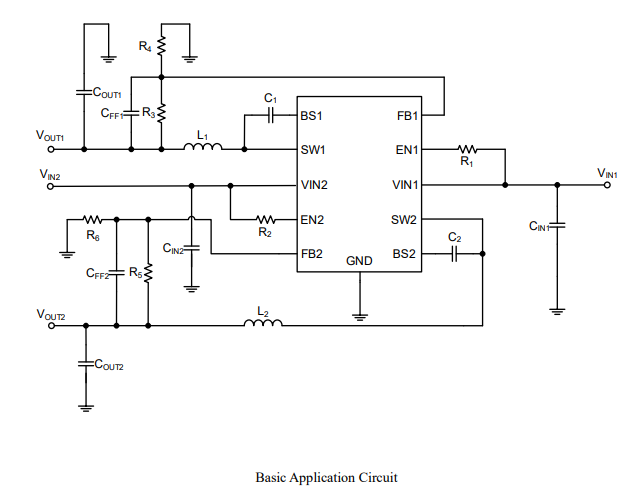

Typical Application Circuit
