LDO線性穩壓芯片
產品名稱：RY6313 40V 150mA Low Power LDO
型號： RY6313
產片介紹：General Description The RY6313 series is a set of high voltage, high accuracy, low quiescent current, low dropout and low power consumption liner regulators T
產片介紹：General Description The RY6313 series is a set of high voltage, high accuracy, low quiescent current, low dropout and low power consumption liner regulators T
┄┄┄詳細介紹┄┄┄
General Description
The RY6313 series is a set of high voltage, high accuracy, low quiescent current, low dropout and low power
consumption liner regulators. There are designed primarily as CMOS technology. They allow input voltages as fixed
voltage regulators. These devices can be high as 40V. They are available with several fixed used with external
components to obtain variable output voltages ranging from 1.8V to 5.0V. The RY6313 series are available in
SOT23-3, SOT23-5 and SOT89-3 package.
Features
• Low Power Consumption:2μA • High Ripple Rejection: 65dB @100Hz
• Low Voltage Drops: 600mV @100mA • High Input Voltage (Up to 40V)
• Low Temperature Coefficient • Output current @VIN-VOUT=2V (Up to 150mA)
• Fixed Output Voltages: 1.8V, 2.5V, 2.7V, 3.0 • Output Voltage Accuracy: ±2% at 25℃
3.3V, 3.6V, 4.0V, 4.4V, 5.0V • SOT23-3/SOT23-5/SOT89-3 Packag
• Thermal Shutdown Protection
Applications
• Power Meter • Smoke Detector
• Multicell Battery Powered Equipment • Audio/Video Equipment
• Communication equipment • LED Driver

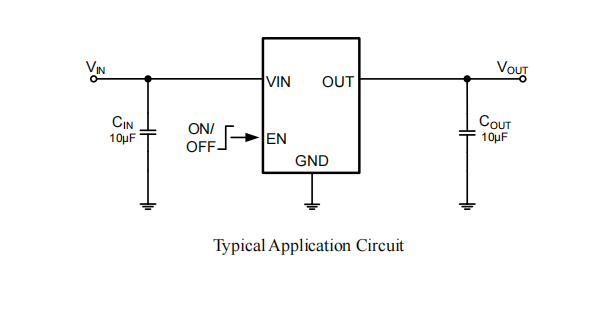

Typical Application Circuit
