LDO線性穩(wěn)壓芯片
產品名稱：RY6031 300mA High PSRR, Low Noise, Low Power LDO
型號： RY6031
產片介紹：General Description The RY6031 is a high PSRR, low noise, ultra-low power LDO that can supply up to 300mA output current Designed to meet the requirements o
產片介紹：General Description The RY6031 is a high PSRR, low noise, ultra-low power LDO that can supply up to 300mA output current Designed to meet the requirements o
┄┄┄詳細介紹┄┄┄
General Description
The RY6031 is a high PSRR, low noise, ultra-low power LDO that can supply up to 300mA output current. Designed
to meet the requirements of IOT, wearable and battery powered applications, the RY6031 device provides low noise,
high PSRR, ultra-low quiescent current, and low line or load transient response figures. Using new innovative design
techniques, the RY6031 offers class-leading noise performance without a noise bypass capacitor. This device is
available with fixed output voltages from 1.1 V to 4.5 V in 50-mV steps. The RY6031 series are available in SOT23-
3, SOT23-5, DFN4-1×1package.
Features
• Input Voltage Range: 2V to 5.5V • High PSRR: 60dB@1KHz (Typ.)
• Output Voltage Range: 1.1V to 4.5V • Over Current Protection
• Output Voltage Tolerance: ±2% • Short Circuit Protection
• Ultra-Low Shutdown Current: 0.1μA (Typ.) • Thermal Shutdown Protection
• Ultra-Low Quiescent Current: 1.5μA (Typ.) • –40°C to 125°C Operating Junction Temperature
• Low Dropout: 80mV@100mA • SOT23-5/SOT23-3/DFN4-1×1 Package
Applications
• Mobile Phones, Tablets • Digital Cameras and Audio Devices
• Portable Medical Equipment • Portable and Battery-Powered Equipment
• Smart Meters and Field Transmitters • RF, PLL, VCO, and Clock Power Supplies
• IP Cameras • Drones

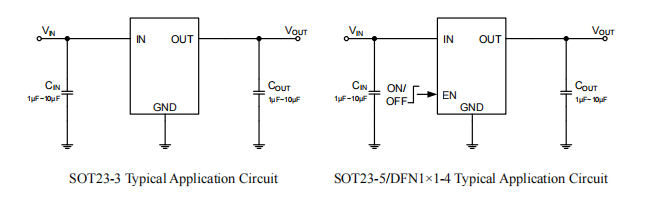

Typical Application Circuit
